NEW PARADIGM CONTROLS

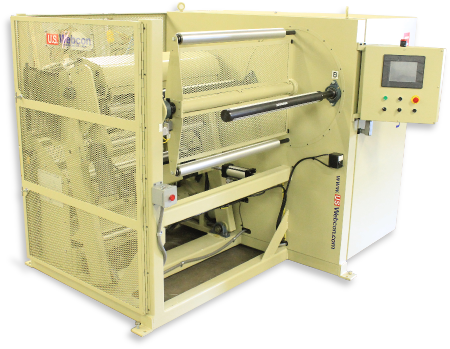

Turret Winder with Zero Speed Transfer

Zero speed tapeless winder with automatic transfer section

(Photo courtesy of US Web Converting)
Product: Melt Blown fiber rolls
Material size: 18" diameter, 24" wide rolls
Line speed 40 fpm

This turret winder and its accompanying accumulator is designed to follow a provided line speed. During the transfer, the excess web is buffered in the accumulator, as the transfer section of the turre...

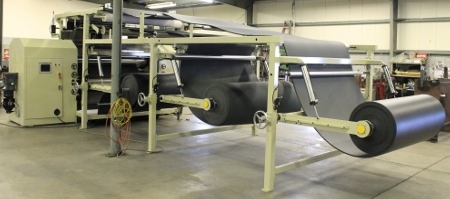

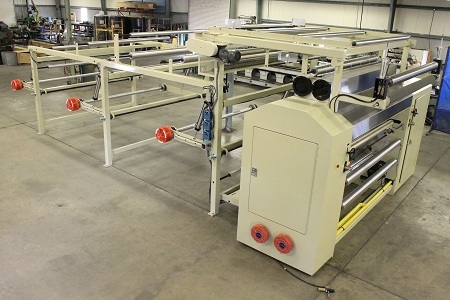

Triple stack flame laminator

(Photos courtesy of US Web Converting)
Product: Athletic mats, closed-cell foam, vinyl and carpet
Material size: 72" wide, 100' long rolls
Line speed 25 meters per minute

This laminator is designed to control tension and unwind three rolls of material, typically two rolls of close-celled foam and one roll of carpet or vinyl, pass the bottom two layers in front of a natural gas burner, and thr...
